No User Serviceable Keys Inside: How to Void Your Warranty One Cap at a Time

I've been using Kanata for a few months now... I switched to it from KMonad when I changed computers earlier this year. I expected the two packages to be fairly similar—which has been largely the case—until this morning, when I finally read some documentation and worked through a more complete implementation of my keymap. That, and of course Kanata is way cooler since it's written in Rust. 🦀

Installing

Installing Kanata proved to be much easier—it's packaged in homebrew and can be installed with a simple brew install kanata. I had been forced to build kmonad and don't work in Haskell, so having a prebuilt binary was a welcomed change.

After installation, I created the following lanuchctl job:

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
    <key>KeepAlive</key>
    <false/>
    <key>Label</key>
    <string>org.custom.kanata</string>
    <key>ProgramArguments</key>
    <array>
        <string>/opt/homebrew/bin/kanata</string>
        <string>--cfg</string>
        <string>/Users/me/Library/Application Support/kanata/kanata.kbd</string>
    </array>
    <key>RunAtLoad</key>
    <true/>
</dict>
</plist>

Because I'm lazy and have a bad memory for launchctl commands, I added an alias to my .zshrc to make cycling the task easier (I don't have to jump back and forth between my editor and LaunchControl):

alias kanata-restart='sudo launchctl kickstart -k system/org.custom.kanata'

I probably had to do a security-authorizy thing somewhere along the way... A procedure which will need to be repeated if homebrew upgrades your kanata installation...

Initial Configuration

I started out with Kanata's home-row-mod-advanced.kbd example. It did a great job of getting me going with home row mods that felt pretty good.

Unfortunately, I didn't understand that the tap-hold-release-keys key list needed to be a list of unmodified (defsrc) keys. Correcting that helped a bunch. I also needed a few/50 extra milliseconds on my timings.

I didn't want Kanata to modify input from my mech board, so I filtered the devices to only modify the internal keyboard:

  macos-dev-names-include (
    "Apple Internal Keyboard / Trackpad"
  )

I anticipated reworking my internal board before I got my laptop, so I opted for the ISO keyboard model to have a better feeling left pinky key. I wasn't able to find an ISO defsrc example keyboard with the extra key named. However, after some searching, I located a thread which refers to the 102nd key as lsgt, or just 102d.

Combos

I was delighted to discover Kanata's support for combos. I implemented them quickly upon discovery—so much so that I overlooked that they were implemented in two versions and just went with the first one in the documentation.

chordsv1 involve making a lot of extra aliases and then configuring them in groups. I used them for several months and they weren't awful, but there was no require-prior-idle concept for them, so they only worked well on non-bigram combos.

The more you know...

This morning, I decided to look further into the issue and discovered chordsv2 which implements an rpi for all combos. This opened up the combo positions considerably, and has allowed me to achieve parity with my mech board.

A Working Caster Config

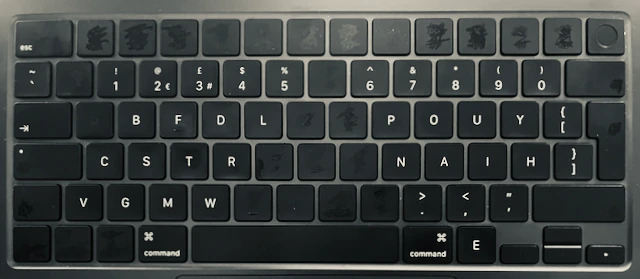

Here's today's version of the Caster Layout (Befuddle Variant) implemented in Kanata.

;; Home row mods QWERTY example with more complexity.
;; Some of the changes from the basic example:
;; - when a home row mod activates tap, the home row mods are disabled
;;   while continuing to type rapidly
;; - tap-hold-release helps make the hold action more responsive
;; - pressing another key on the same half of the keyboard
;;   as the home row mod will activate an early tap action

(defcfg
  process-unmapped-keys yes
  macos-dev-names-include (
    "Apple Internal Keyboard / Trackpad"
  )
    concurrent-tap-hold yes
    chords-v2-min-idle 20
)
(defsrc
  1 2 3 4 5 6 7 8 9 0 - =
  q w e r t y u i o p [ ]
  caps a s d f g h j k l ; ' \
  lsft ` z x c v b n m , . / rsft
    lmet spc rmet ralt
)
(defvar
  ;; Note: consider using different time values for your different fingers.
  ;; For example, your pinkies might be slower to release keys and index
  ;; fingers faster.
  tap-time 250
  hold-time 200
  short-chord 25
  long-chord 50

  left-hand-keys (
    1 2 3 4 5 6
    q w e r t y
    a s d f g
    lsgt z x c v b
    lmet spc
  )
  right-hand-keys (
    7 8 9 0 - =
    u i o p [ ]
    h j k l ; ' \
    n m , . / rsft
    rmet ralt
  )
)

;; (deflayer contains-no-ops
  ;; XX ✗ ∅ •)

(deflayer base
  • 1 2 3 4 5 • 6 7 8 9 0
  • b f d l • • p o u y •
  @cw @c @s @t @r • • •  @n @a @i @h •
  @ss v g m w • • • • . , ' @ss
    @bfun @snn e ret
)

(deflayer nomods
  • 1 2 3 4 5 • 6 7 8 9 0
  • b f d l • • p o u y •
  @cw c s t r • • •  n  a  i  h •
  @ss v g m w • • • • . , ' @ss
    bspc spc e ret
)

(deflayer nn
  • • • • • • • • • • • •
  • kprt kp7 kp8 kp9 • • vold mute volu • •
  • kp0 kp4 kp5 kp6 • • • left down up right •
  • kp. kp1 kp2 kp3 • • • • home pgdn pgup end
    bspc • • •
)

(deflayer fun
  • • • • • • • • • • • •
  • f12 f7 f8 f9 • • • • • • •
  • f11 f4 f5 f6 • • • • • • • •
  • f10 f1 f2 f3 • • • • • • • •
    • • • •
)

(deffakekeys
  to-base (layer-switch base)
)
(defalias
  tap (multi
    (layer-switch nomods)
    (on-idle-fakekey to-base tap 20)
  )

  ss (one-shot 2000 lsft)
  cw (caps-word-toggle 5000)

  snn (tap-hold $tap-time $hold-time spc (layer-while-held nn)) ;; tap: space hold: numbers layer
  bfun (tap-hold $tap-time $hold-time bspc (layer-while-held fun)) ;; tap: bspc hold: function layer

  c (tap-hold-release-keys $tap-time $hold-time (multi c @tap) lctl $left-hand-keys)
  s (tap-hold-release-keys $tap-time $hold-time (multi s @tap) lalt $left-hand-keys)
  t (tap-hold-release-keys $tap-time $hold-time (multi t @tap) lmet $left-hand-keys)
  r (tap-hold-release-keys $tap-time $hold-time (multi r @tap) lsft $left-hand-keys)
  n (tap-hold-release-keys $tap-time $hold-time (multi n @tap) rsft $right-hand-keys)
  a (tap-hold-release-keys $tap-time $hold-time (multi a @tap) rmet $right-hand-keys)
  i (tap-hold-release-keys $tap-time $hold-time (multi i @tap) ralt $right-hand-keys)
  h (tap-hold-release-keys $tap-time $hold-time (multi h @tap) rctl $right-hand-keys)
)

(defchordsv2
  ;; v2 chords are defined wit defsrc key positions
  ;; 1 2 3 4 5 6 7 8 9 0 - =
  ;; q w e r t y u i o p [ ]
  ;; caps a s d f g h j k l ; ' \
  ;; lsft ` z x c v b n m , . / rsft
  ;;   lmet spc rmet ralt
    (f k     ) caps $short-chord all-released (nn fun)

    (w e     ) lsgt $short-chord all-released (nn fun)
    (  e r   ) x $short-chord all-released (nn fun)
    (    r t ) = $short-chord all-released (nn fun)
    (  e r t ) esc $short-chord all-released (nn fun)

    (a s     ) tab $short-chord all-released (nn fun)

    (; '     ) ; $short-chord all-released (nn fun)

    (` z     ) q $short-chord all-released (nn fun)
    (  z x   ) j $short-chord all-released (nn fun)
    (    x c ) - $short-chord all-released (nn fun)
    (`      c) z $short-chord all-released (nn fun)

    (i o     ) \ $short-chord all-released (nn fun)
    (    p [ ) k $short-chord all-released (nn fun)
    (  o p   ) [ $short-chord all-released (nn fun)
    (i     [ ) ] $short-chord all-released (nn fun)
    (i   p   ) S-0 $short-chord all-released (nn fun)
    ( o    [ ) S-9 $short-chord all-released (nn fun)
    ;; (i o p [ ) (macro = S-.) $short-chord all-released (nn fun)

    (, .     ) / $short-chord all-released (nn fun)
    (  . /   ) S-[ $short-chord all-released (nn fun)
    (,   rsft) S-] $short-chord all-released (nn fun)
    (, /     ) S-. $short-chord all-released (nn fun)
    ( .  rsft) S-, $short-chord all-released (nn fun)
    (. , / rsft) (macro = S-.) $short-chord all-released (nn fun)


    (a `) M-z $long-chord all-released (nn fun)
    (z s) M-x $long-chord all-released (nn fun)
    (x d) M-c $long-chord all-released (nn fun)
    (c f) M-v $long-chord all-released (nn fun)
)

Outro

I ran into a couple of snags along the way. I tried to implement several 4 key combos (chordsv2 in Kanata parlance). The larger combos work surprisingly well in some positions—and not at all in others. I don't think this is Kanata's fault; I would assume it's a keymatrix thing? Although I'm not even sure how this board is implemented.

The vertical combos are not pressable for me with a single finger, but I still appreciate having them match my mech.

Until our robot overlords type for us!
